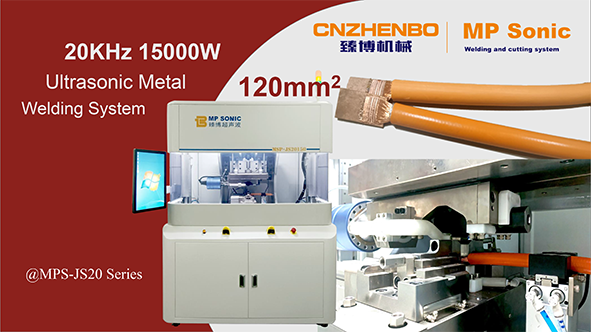

15KW Ultrasonic Metal Welder MSP-JS20150

MSP-JS20150 applies ultrasonic metal welding system in 15KW to welding high voltage cable in challenging size which max to 120mm2. Machine applies industrial PC panel to operate and set machine. Ultrasonic welding is power supplied by 20KHz in digital control which is powered by IGBT cell.

I. Benifit

1. MP Sonic 15KW ultrasonic metal welding system, high welding ability in stable performance;

2. Machine manufacturing in high precision with multiple manufacturing process procedure from high glass material, ensure machine duration in stability and precision;

3. Welding motion  is Linear way guided in high precision (precision as high as 0.01mm);

4.  Industrial Panel PC is equipped with machine for operation control, MP Sonic intelligent operation system for easy operation, meeting high requirement in management-quality management, production management, equipment management, etc.

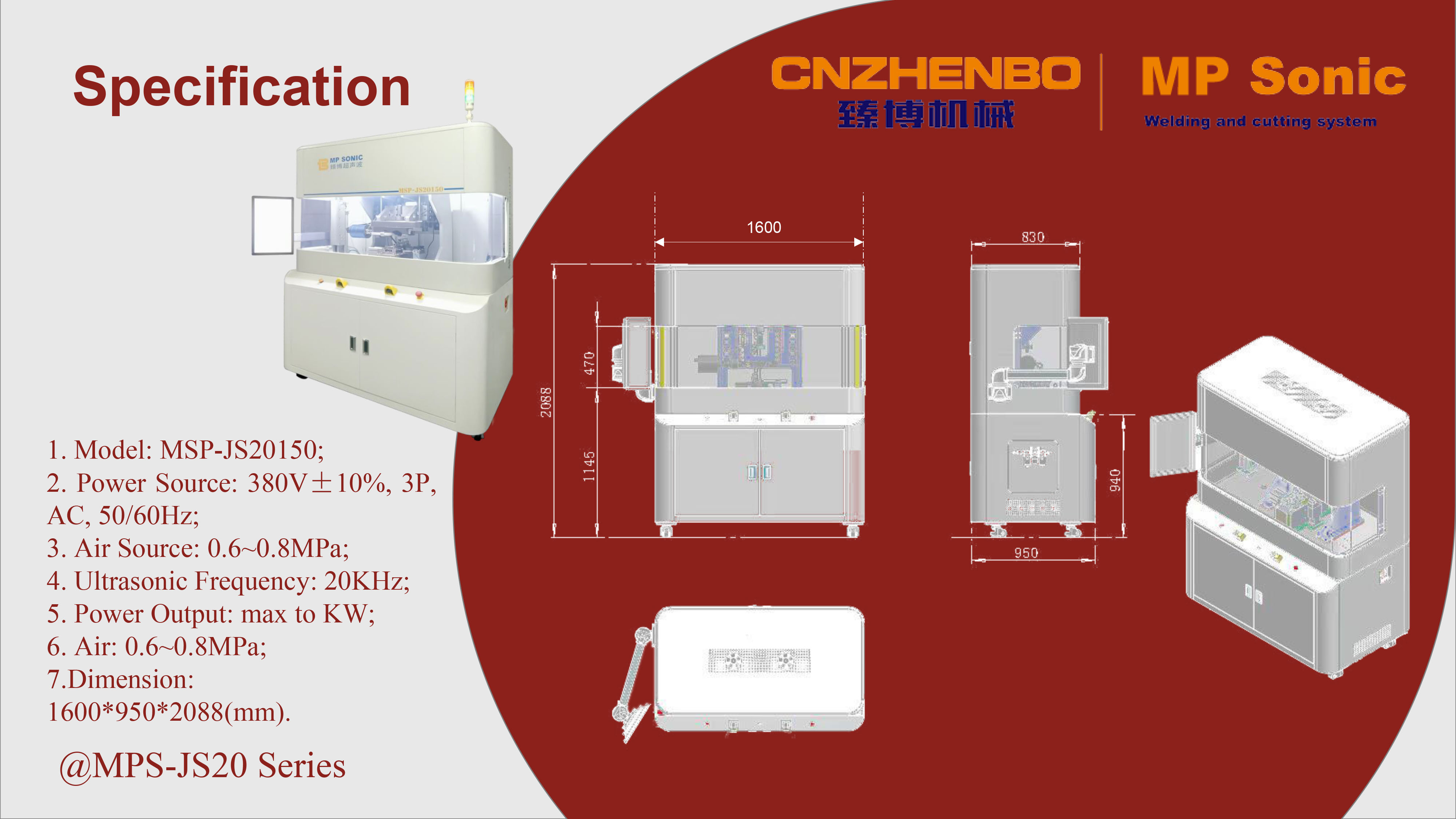

I. Specification

1. Model: MSP-JS20150;

2. Power Source: 380V±10%, 3P, AC, 50/60Hz;

3. Air Source: 0.6~0.8MPa;

4. Ultrasonic Frequency: 20KHz;

5. Power Output: max to KW;

6. Air: 0.6~0.8MPa;

7.Dimension: 1600*950*2088(mm).
