Advanced Ultrasonic Welding Machine

MSP-T  seriesultrasonic machine is ultrasonic welder designed with dynamic pressure force trigger system for plastic welding with high requirement in ultrasonic output.

Machine applies MP Sonic ultrasonic system in anti-resonance design in high loading ability. Machine ultrasonic system including 15KHz, 20KHz, 35KHz and 40KHz, ultrasonic power output convers the ranges of 1200~5600W.

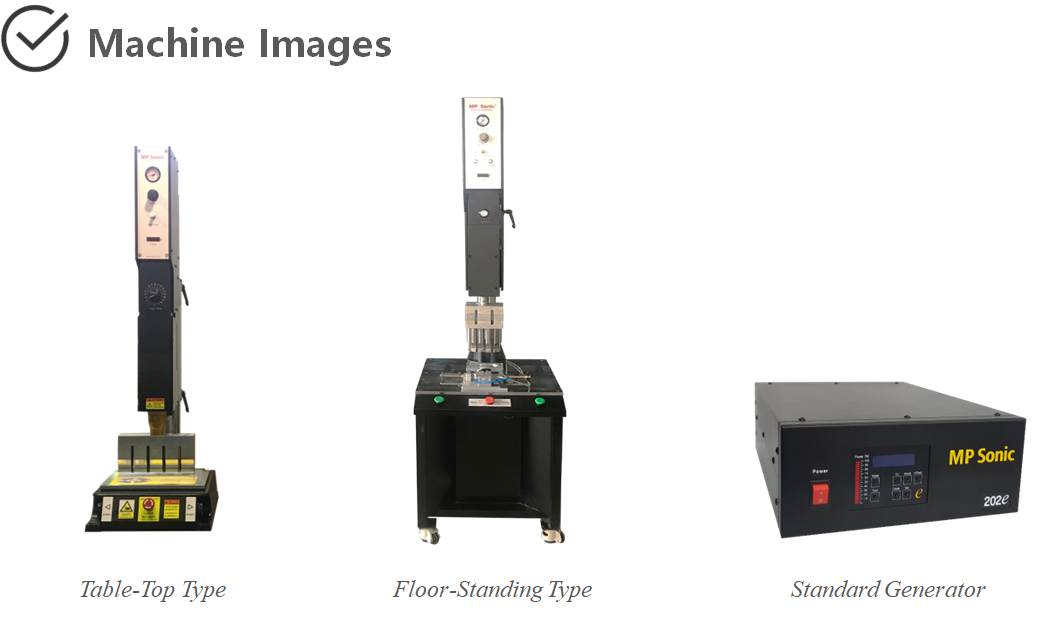

Machine construction can be floor-standing type and table-top type for option.

I. Benefit

• High loading ability;
• Precision in ultrasonic output control
• Stable in performance;
• Reliable in quality;
• Intelligent in operation.

1. Welding dynamic force trigger control.

2. Easy machine head level adjustment system.

3. Adjustable amplitude.

4. Intime dynamic technical compensation

5. Multiple self-protection.

V. Optional Features:

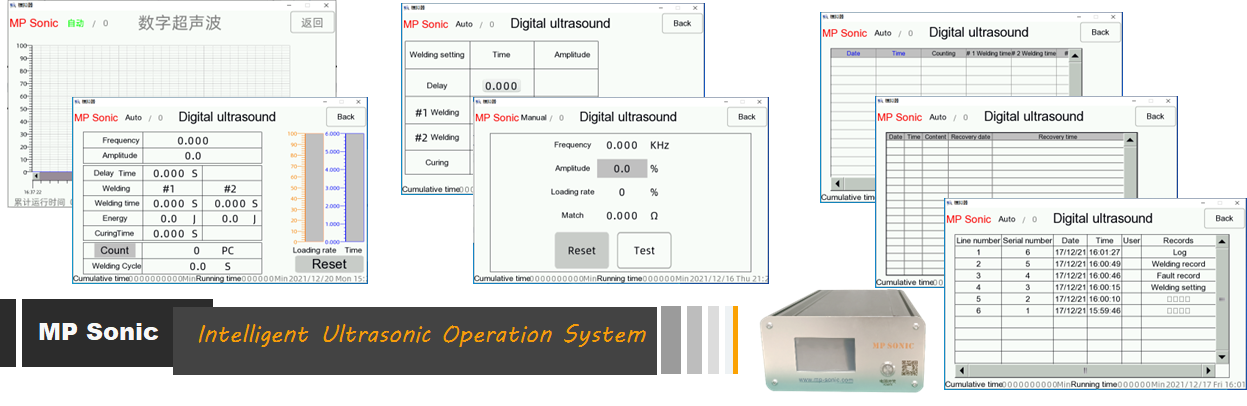

MP Sonic Intelligent Operation system, including：

• Formula System
•  Welding Process Dynamic Supervision
• Welding process control: three steps.
• Impedance analysis system.
• Welding Record System;
• Alarm Record System
•  Equipment Operation Daily Record
•  Tri-level Authorization Management　

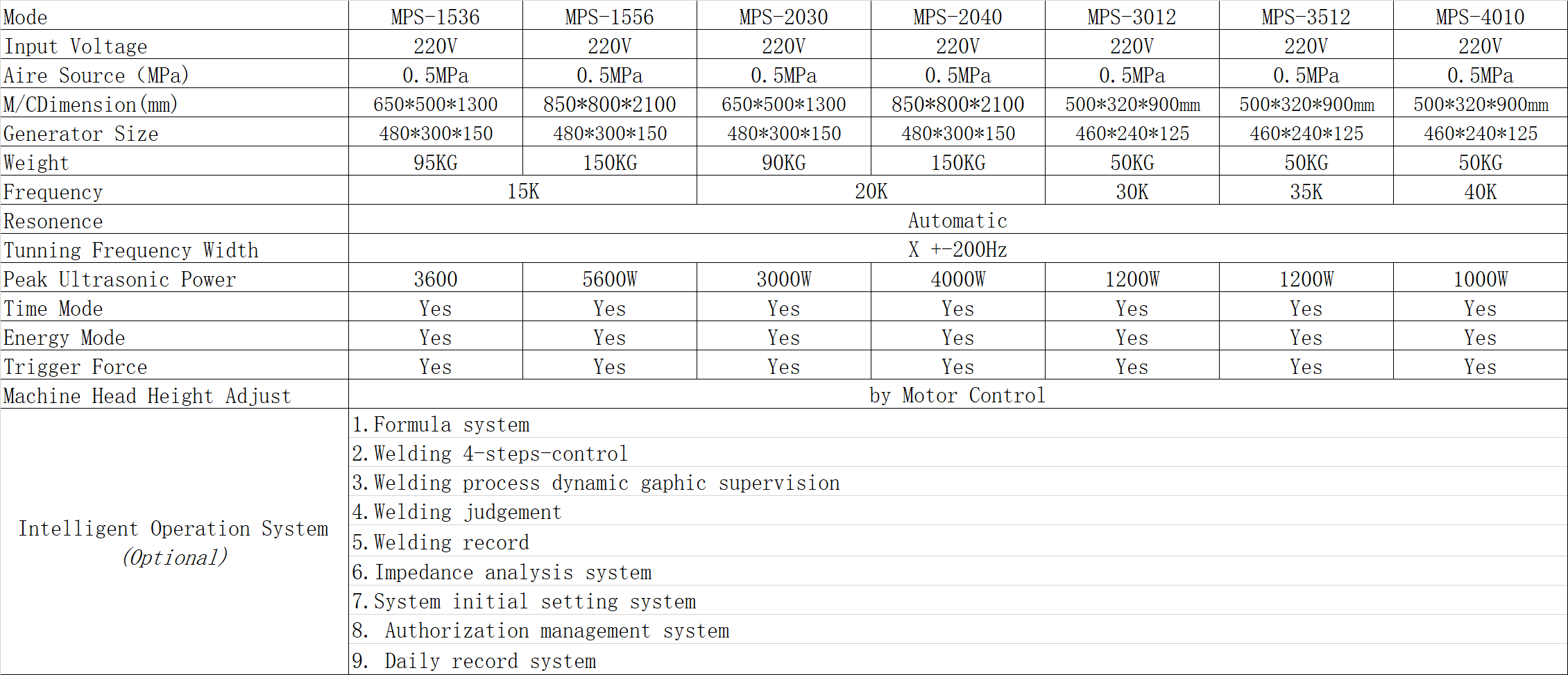

V. Machine Specification:
